Spring Cloud Zookeeper

本章节的代码:https://github.com/wicksonZhang/Spring-Cloud

我们只需要聚焦在如下2个服务当中(singleton-单机):

1. 基础概念

1.1. Zookeeper 是什么?

  • Zookeeper 是一个开源的分布式协调服务,旨在提供高度可靠性和高性能的分布式数据管理和协调。

  • 在微服务体系中 Zookeeper 可以充当我们的服务注册中心,允许微服务在其上注册自身的位置信息,并且允许其他服务查询和发现这些注册服务。

    Apache_ZooKeeper_logo.svg

1.2. Zookeeper 优缺点

优点

  1. 高可用性: ZooKeeper采用了多副本机制,支持主备架构,确保了服务的高可用性。
  2. 一致性和可靠性: 提供了强一致性的数据模型,对数据的更新操作都是原子性的,能够确保数据的可靠性和一致性。
  3. 轻量级和高性能: ZooKeeper的设计注重了性能和效率,可以处理大规模的请求,并且响应速度很快。
  4. 可扩展性: 可以很容易地扩展集群,支持动态添加和删除节点,以适应不同规模和负载的需求。
  5. 通用性: 不仅可以作为服务注册中心,还可以用于分布式锁、队列、选举等场景,具有通用性。

缺点

  1. 复杂性: 在配置、部署和维护方面需要一定的专业知识,可能增加系统的复杂性。
  2. 单点故障: 尽管ZooKeeper的设计是高可用的,但如果整个ZooKeeper集群失效,会对整个系统造成严重影响。
  3. 性能瓶颈: 在某些高并发场景下,ZooKeeper可能成为性能瓶颈,对系统的性能产生影响。

1.3. Zookeeper 解决了什么问题

服务注册与发现

  • 问题:购物车服务需要与其他服务进行通信,但是服务的 IP 地址和端口是动态变化的。
  • Zookeeper 提供的解决方案: 购物车服务在启动时注册自己的 IP 地址和端口到 ZooKeeper 的节点中。其他服务需要调用购物车服务时,可以从 ZooKeeper 获取最新的购物车服务地址和端口信息,实现动态的服务发现和通信。

服务的健康检查

  • 问题: 当购物车服务出现故障时,其他服务需要知道购物车的服务状态。
  • Zookeeper 提供的解决方案: ZooKeeper 可以监控购物车服务节点的健康状态,如果购物车服务不可用,ZooKeeper 可以及时更新节点信息,通知其他服务不要使用该服务或使用备用服务。

2. 安装 Zookeeper

Zookeeper 下载地址:https://apache.org/dist/zookeeper/

安装环境

  • 操作系统:CentOS Linux release 7.9.2009 (Core)
  • Zookeeper 版本:zookeeper-3.4.14

安装步骤

  1. Step-1:上传安装包
  2. Step-2:解压安装包
  3. Step-3:修改配置文件

具体实现

  • Step-1:上传安装包,直接将安装包上传至 home 盘符

    image-20240103102654867

  • Step-2:解压安装包

    shell
    1
    [root@localhost home]# tar -zxvf zookeeper-3.4.14.tar.gz
  • Step-3:修改配置文件

    shell
    1
    2
    3
    4
    5
    6
    7
    8
    9
    [root@localhost home]# cd zookeeper-3.4.14/conf/
    [root@localhost conf]# cp zoo_sample.cfg zoo.cfg
    [root@localhost conf]# ll
    总用量 16
    -rw-rw-r--. 1 2002 2002 535 3月 7 2019 configuration.xsl
    -rw-rw-r--. 1 2002 2002 2161 3月 7 2019 log4j.properties
    -rw-r--r--. 1 root root 922 1月 3 10:29 zoo.cfg
    -rw-rw-r--. 1 2002 2002 922 3月 7 2019 zoo_sample.cfg
    [root@localhost conf]#

3. 启动 Zookeeper

本次搭建的环境是 Zookeeper 的单机环境

  • 启动:./zkServer.sh start
sh
1
2
3
4
5
6
[root@localhost zookeeper-3.4.14]# cd bin/
[root@localhost bin]# ./zkServer.sh start # 启动 Zookeeper
ZooKeeper JMX enabled by default
Using config: /home/zookeeper-3.4.14/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@localhost bin]#
  • 停止:./zkServer.sh stop
shell
1
2
3
4
5
[root@localhost bin]# ./zkServer.sh stop
ZooKeeper JMX enabled by default
Using config: /home/zookeeper-3.4.14/bin/../conf/zoo.cfg
Stopping zookeeper ... STOPPED
[root@localhost bin]#
  • 重启:./zkServer.sh restart
shell
1
2
3
4
5
6
7
8
9
10
[root@localhost bin]# ./zkServer.sh restart
ZooKeeper JMX enabled by default
Using config: /home/zookeeper-3.4.14/bin/../conf/zoo.cfg
ZooKeeper JMX enabled by default
Using config: /home/zookeeper-3.4.14/bin/../conf/zoo.cfg
Stopping zookeeper ... no zookeeper to stop (could not find file /tmp/zookeeper/zookeeper_server.pid)
ZooKeeper JMX enabled by default
Using config: /home/zookeeper-3.4.14/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@localhost bin]#
  • 状态:./zkServer.sh status
sh
1
2
3
4
5
[root@localhost bin]# ./zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /home/zookeeper-3.4.14/bin/../conf/zoo.cfg
Mode: standalone
[root@localhost bin]#
  • 进入节点:./zkCli.sh
shell
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
[root@localhost bin]# ./zkCli.sh
Connecting to localhost:2181
2024-01-03 10:39:16,723 [myid:] - INFO [main:Environment@100] - Client environment:zookeeper.version=3.4.14-4c25d480e66aadd371de8bd2fd8da255ac140bcf, built on 03/06/2019 16:18 GMT
2024-01-03 10:39:16,725 [myid:] - INFO [main:Environment@100] - Client environment:host.name=localhost
2024-01-03 10:39:16,725 [myid:] - INFO [main:Environment@100] - Client environment:java.version=1.8.0_171
2024-01-03 10:39:16,726 [myid:] - INFO [main:Environment@100] - Client environment:java.vendor=Oracle Corporation
2024-01-03 10:39:16,726 [myid:] - INFO [main:Environment@100] - Client environment:java.home=/home/java/jdk1.8.0_171/jre
2024-01-03 10:39:16,726 [myid:] - INFO [main:Environment@100] - Client environment:java.class.path=/home/zookeeper-3.4.14/bin/../zookeeper-server/target/classes:/home/zookeeper-3.4.14/bin/../build/classes:/home/zookeeper-3.4.14/bin/../zookeeper-server/target/lib/*.jar:/home/zookeeper-3.4.14/bin/../build/lib/*.jar:/home/zookeeper-3.4.14/bin/../lib/slf4j-log4j12-1.7.25.jar:/home/zookeeper-3.4.14/bin/../lib/slf4j-api-1.7.25.jar:/home/zookeeper-3.4.14/bin/../lib/netty-3.10.6.Final.jar:/home/zookeeper-3.4.14/bin/../lib/log4j-1.2.17.jar:/home/zookeeper-3.4.14/bin/../lib/jline-0.9.94.jar:/home/zookeeper-3.4.14/bin/../lib/audience-annotations-0.5.0.jar:/home/zookeeper-3.4.14/bin/../zookeeper-3.4.14.jar:/home/zookeeper-3.4.14/bin/../zookeeper-server/src/main/resources/lib/*.jar:/home/zookeeper-3.4.14/bin/../conf:.:/home/java/jdk1.8.0_171/lib/dt.jar:/home/java/jdk1.8.0_171/lib/tools.jar
2024-01-03 10:39:16,726 [myid:] - INFO [main:Environment@100] - Client environment:java.library.path=/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib
2024-01-03 10:39:16,726 [myid:] - INFO [main:Environment@100] - Client environment:java.io.tmpdir=/tmp
2024-01-03 10:39:16,727 [myid:] - INFO [main:Environment@100] - Client environment:java.compiler=<NA>
2024-01-03 10:39:16,727 [myid:] - INFO [main:Environment@100] - Client environment:os.name=Linux
2024-01-03 10:39:16,731 [myid:] - INFO [main:Environment@100] - Client environment:os.arch=amd64
2024-01-03 10:39:16,731 [myid:] - INFO [main:Environment@100] - Client environment:os.version=3.10.0-1160.el7.x86_64
2024-01-03 10:39:16,731 [myid:] - INFO [main:Environment@100] - Client environment:user.name=root
2024-01-03 10:39:16,731 [myid:] - INFO [main:Environment@100] - Client environment:user.home=/root
2024-01-03 10:39:16,731 [myid:] - INFO [main:Environment@100] - Client environment:user.dir=/home/zookeeper-3.4.14/bin
2024-01-03 10:39:16,732 [myid:] - INFO [main:ZooKeeper@442] - Initiating client connection, connectString=localhost:2181 sessionTimeout=30000 watcher=org.apache.zookeeper.ZooKeeperMain$MyWatcher@4b9af9a9
2024-01-03 10:39:16,753 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@1025] - Opening socket connection to server localhost/127.0.0.1:2181. Will not attempt to authenticate using SASL (unknown error)
Welcome to ZooKeeper!
JLine support is enabled
2024-01-03 10:39:16,844 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@879] - Socket connection established to localhost/127.0.0.1:2181, initiating session
2024-01-03 10:39:16,885 [myid:] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@1299] - Session establishment complete on server localhost/127.0.0.1:2181, sessionid = 0x10000196f360000, negotiated timeout = 30000

WATCHER::

WatchedEvent state:SyncConnected type:None path:null
[zk: localhost:2181(CONNECTED) 0]

4. Zookeeper 单机操作

  • 实现需求

    • 我们将上一章节的 订单、支付微服务注册到 Zookeeper 当中
  • 实现思路

    • Step-1:创建支付服务 04-spring-cloud-singleton-zookeeper-payment-4000
    • Step-2:创建订单服务 04-spring-cloud-singleton-zookeeper-order-4100

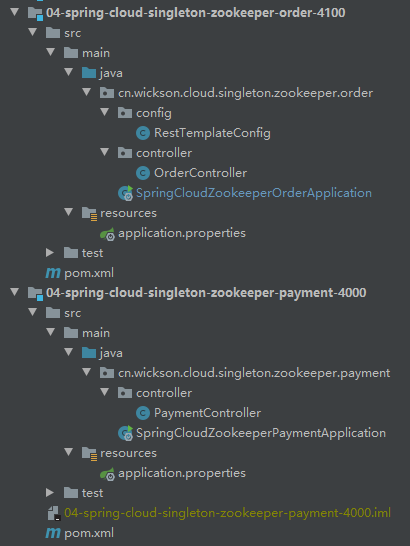

  • 代码结构

    image-20240103170907862

4.1. 创建支付服务

  • 创建支付服务:04-spring-cloud-singleton-zookeeper-payment-4000
  • 实现步骤

    • Step-1:导入 pom.xml 依赖
    • Step-2:修改 application.properties 文件
    • Step-3:创建主启动类
    • Step-4:编写业务类
  • 导入 pom.xml 依赖

xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
<dependencies>
<!-- 引入公共依赖 -->
<dependency>
<groupId>cn.wickson.cloud</groupId>
<artifactId>01-spring-cloud-common</artifactId>
<version>1.0-SNAPSHOT</version>
</dependency>

<!-- 引入 Zookeeper 组件 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
<!-- 排除自带的 Zookeeper -->
<exclusions>
<exclusion>
<groupId>org.apache.zookeeper</groupId>
<artifactId>zookeeper</artifactId>
</exclusion>
</exclusions>
</dependency>

<!-- 添加 zookeeper 3.4.14 版本 -->
<dependency>
<groupId>org.apache.zookeeper</groupId>
<artifactId>zookeeper</artifactId>
<version>3.4.14</version>
</dependency>
</dependencies>
  • 修改 application.properties 文件
properties
1
2
3
4
5
6
# 端口
server.port=4000
# 服务别名
spring.application.name=spring-cloud-zookeeper-payment-4000
# zookeeper 注册节点
spring.cloud.zookeeper.connect-string=192.168.1.15:2181
  • 创建主启动类
    • 注意:需要添加 @EnableDiscoveryClient ,用于向 consul 或者 zookeeper 作为注册中心注册微服务
java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
* 支付服务-微服务启用类
*
* @author ZhangZiHeng
* @date 2024-01-03
*/
// 用于向 consul 或者 zookeeper 作为注册中心注册微服务
@EnableDiscoveryClient
@SpringBootApplication
public class SpringCloudZookeeperPaymentApplication {

public static void main(String[] args) {
SpringApplication.run(SpringCloudZookeeperPaymentApplication.class, args);
}

}
  • 编写业务类
java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/**
* 支付服务-控制类
*
* @author ZhangZiHeng
* @date 2024-01-03
*/
@RestController
@RequestMapping("/payment")
public class PaymentController {

@Value("${server.port}")
private String serverPort;

@GetMapping("/zk")
public ResultUtil paymentZk() {
return ResultUtil.success("Spring Cloud with zookeeper port: " + serverPort + ", UUID:" + UUID.randomUUID().toString());
}

}

4.2. 创建订单服务

  • 创建订单服务:04-spring-cloud-singleton-zookeeper-order-4100

  • 实现步骤

    • Step-1:导入 pom.xml 依赖
    • Step-2:修改 application.properties 文件
    • Step-3:创建主启动类
    • Step-4:编写业务类
  • 导入 pom.xml 依赖

xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
<dependencies>
<!-- 引入公共依赖 -->
<dependency>
<groupId>cn.wickson.cloud</groupId>
<artifactId>01-spring-cloud-common</artifactId>
<version>1.0-SNAPSHOT</version>
</dependency>

<!-- 引入 Zookeeper 组件 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
<!-- 排除自带的 Zookeeper -->
<exclusions>
<exclusion>
<groupId>org.apache.zookeeper</groupId>
<artifactId>zookeeper</artifactId>
</exclusion>
</exclusions>
</dependency>

<!-- 添加 zookeeper 3.4.14 版本 -->
<dependency>
<groupId>org.apache.zookeeper</groupId>
<artifactId>zookeeper</artifactId>
<version>3.4.14</version>
</dependency>
</dependencies>
  • 修改 application.properties 文件
properties
1
2
3
4
5
6
# 端口
server.port=4100
# 服务别名
spring.application.name=spring-cloud-zookeeper-order-4100
# zookeeper 注册节点
spring.cloud.zookeeper.connect-string=192.168.1.15:2181
  • 创建主启动类
java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
* 支付服务-微服务启用类
*
* @author ZhangZiHeng
* @date 2024-01-03
*/
// 用于向 consul 或者 zookeeper 作为注册中心注册微服务
@EnableDiscoveryClient
@SpringBootApplication
public class SpringCloudZookeeperOrderApplication {

public static void main(String[] args) {
SpringApplication.run(SpringCloudZookeeperOrderApplication.class, args);
}

}
  • 编写业务类

  • OrderController.java

java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
/**
* 订单服务-控制类
*
* @author ZhangZiHeng
* @date 2023-12-27
*/
@Slf4j
@Validated
@RestController
@RequestMapping("/order")
public class OrderController {

public static final String PAYMENT_URL = "spring-cloud-zookeeper-payment-4000";

@Resource
private RestTemplate restTemplate;

/**
* 获取订单
*
* @return ResultUtil
*/
@GetMapping("/getPayment/zk")
public ResultUtil getPayment() {
return restTemplate.getForObject(PAYMENT_URL + "/payment/zk" , ResultUtil.class);
}

}
  • RestTemplateController.java
java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
* RestTemplate 配置
*
* @author ZhangZiHeng
* @date 2023-12-27
*/
@Configuration
public class RestTemplateConfig {

@Bean
@LoadBalanced
public RestTemplate restTemplate() {
return new RestTemplate();
}

}

5. 单元测试

5.1. 是否在 Zookeeper 注册节点

sh
1
2
3
4
[zk: localhost:2181(CONNECTED) 36] ls /
[services, zookeeper]
[zk: localhost:2181(CONNECTED) 37] ls /services
[spring-cloud-zookeeper-payment-4000, spring-cloud-zookeeper-order-4100]

5.2. 查看支付服务信息

sh
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
[zk: localhost:2181(CONNECTED) 38] ls /services/spring-cloud-zookeeper-payment-4000
[d4569f56-631c-4e57-babc-cbdcf0f3ffe5]
[zk: localhost:2181(CONNECTED) 39] get /services/spring-cloud-zookeeper-payment-4000/d4569f56-631c-4e57-babc-cbdcf0f3ffe5
{
"name": "spring-cloud-zookeeper-payment-4000",
"id": "d4569f56-631c-4e57-babc-cbdcf0f3ffe5",
"address": "localhost",
"port": 4000,
"sslPort": null,
"payload": {
"@class": "org.springframework.cloud.zookeeper.discovery.ZookeeperInstance",
"id": "application-1",
"name": "spring-cloud-zookeeper-payment-4000",
"metadata": {}
},
"registrationTimeUTC": 1704262890376,
"serviceType": "DYNAMIC",
"uriSpec": {
"parts": [
{
"value": "scheme",
"variable": true
},
{
"value": "://",
"variable": false
},
{
"value": "address",
"variable": true
},
{
"value": ":",
"variable": false
},
{
"value": "port",
"variable": true
}
]
}
}

5.3. 查看订单服务信息

sh
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
[zk: localhost:2181(CONNECTED) 40] ls /services/spring-cloud-zookeeper-order-4100
[e9fc060d-e1e5-4ef6-bd49-729405d998c6]
[zk: localhost:2181(CONNECTED) 41] get /services/spring-cloud-zookeeper-order-4100/e9fc060d-e1e5-4ef6-bd49-729405d998c6
{
"name": "spring-cloud-zookeeper-order-4100",
"id": "e9fc060d-e1e5-4ef6-bd49-729405d998c6",
"address": "localhost",
"port": 4100,
"sslPort": null,
"payload": {
"@class": "org.springframework.cloud.zookeeper.discovery.ZookeeperInstance",
"id": "application-1",
"name": "spring-cloud-zookeeper-order-4100",
"metadata": {}
},
"registrationTimeUTC": 1704262892614,
"serviceType": "DYNAMIC",
"uriSpec": {
"parts": [
{
"value": "scheme",
"variable": true
},
{
"value": "://",
"variable": false
},
{
"value": "address",
"variable": true
},
{
"value": ":",
"variable": false
},
{
"value": "port",
"variable": true
}
]
}
}

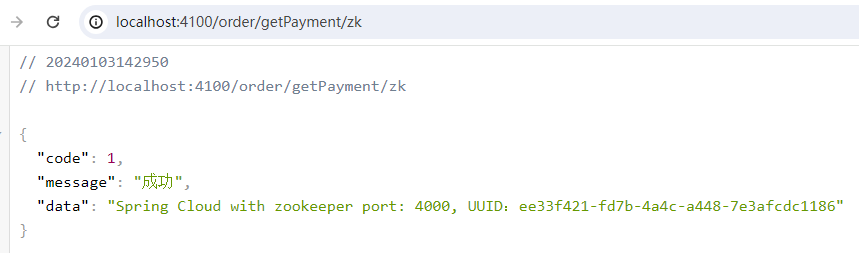

5.4. 访问订单服务

image-20240103143111463
